Bright Biomethane – Gas Upgrading System –

About the Company:

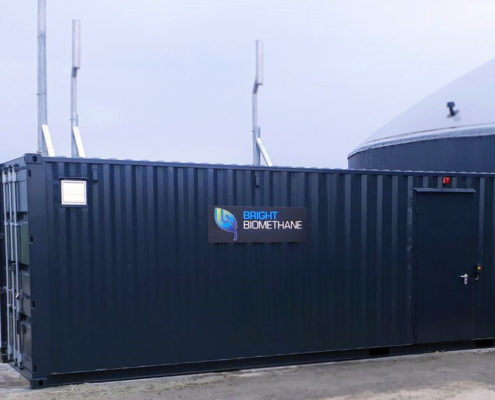

Bright Biomethane offers a proven systems with membrane technology to upgrade biogas to biomethane. Bright Biomethane offers support throughout all process steps from engineering to commissioning and final acceptance. The smart design combined with high quality components guarantee high system availability and low maintenance cost. Since the system arrives on-site fully pre-tested the commissioning can be completed quickly. The system is fully automatic and the advanced controls ensure quick response to fluctuations in the biogas supply. With remote monitoring and customized service & maintenance contracts the efficiency of the operation can be optimized further.

About the Solution:

Biogas Upgrading to Biomethane

Bright Biomethane offers a well-proven system to upgrade biogas to a methane-rich product gas, also known as biomethane or Renewable Natural Gas (RNG). By applying highly efficient membranes, the separation of methane from biogas can reach an efficiency of more than 99.5% and render biomethane suitable for injection in the national grid or compression to CNG.

Bright Biomethane systems are available in standard capacities from 40 Nm3/hr to 5,000 Nm3/hr. Other capacities are available on request. This makes Bright Biomethane one of the few suppliers able to deliver the total range from small to large biogas upgrading installations.




Bright Biomethane – Gas Upgrading System PO BOX 40020 7504 RA Enschede, Netherlands +31 53 460 9088 Visit Company Website

Solution Type

  • AD Support

Vendor

  • Equipment Vendor

Product

  • Energy

Problem

  • GHG
  • Odor
  • Pathogens

To view additional information about this vendor, click below.

Solution Strengths, Weaknesses and Critical Indicators

Anaerobic Digester Associated Technology:

NOTE: There are several technology types that are used as part of an integrated manure management system that includes an anaerobic digester and are not applicable to manure management in other cases. The impact of these technologies on the critical indicators are represented as those of an entire anaerobic digester system.



  • Long usable life and can be run reliably
  • Creates energy and generates environmental credits
  • Requires proper preparation of the feedstock
  • Requires other technologies for energy utilization
  • Requires other technologies for digestate handling
  • Proper feeding & system monitoring is required to avoid system downtime
  • Proven technology for odor control, GHG reduction and pathogen reduction

Newtrient Comments/Opinions:

Biogas upgrading technology:

  • Produces renewable natural gas (RNG) by removing carbon dioxide, hydrogen sulfide, nitrogen, oxygen and water vapor from biogas
  • Includes technologies such as membrane separation, pressure swing absorption and water scrubbing
  • Used to treat biogas from an anaerobic digester
  • Most systems are technically complex
  • Produced gas can be sold to pipelines or transported as CNG for fuel uses.

  • Newtrient 9-Point Scoring Rating

    View the Scoring Page
