Biogest – PowerCompact Complete Mix Digester

Home / Catalog Entries / Biogest – PowerCompact Complete Mix Digester

Biogest – PowerCompact Complete Mix Digester

About the Company:

BIOGEST is a European biogas plant manufacturer with its headquarters in Austria and subsidiaries in the UK, Italy, Romania, Serbia, the Czech Republic and the US. With a staff of around 50 employees, they have installed over 120 biogas plants generating electricity or biomethane. Their reference plants are located in many European countries, and the global market is served by licensed partners. Their biogas engineering operations extend along the entire biogas value chain, from project development to planning, financing, turnkey construction and operation (including service & maintenance)  of biogas plants with an output of 100 kW to 3,500 kW.



In addition to engineering, they are also actively operating in the fields of Biogas OPO (Own Plant Operations), energy efficiency and agriculture. Biogas plants are constructed using our tried-and-tested Biogest PowerRing technology which offers numerous advantages in terms of energy efficiency, operating safety and availability. PowerRing and PowerCompact biogas plants have been operating successfully for more than 10 years, installed at over 100 reference plants.

About the Solution:

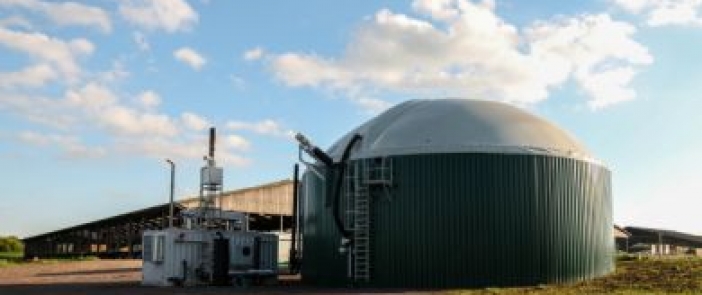

The PowerCompact system is an economic one-stage biogas plant with a power output of 100 kW to 250 kW. The PowerCompact system has been especially developed for dairy farms, and can operate with a 100% slurry substrate. The design is based on a reinforced concrete tank with a double membrane gas storage facility on top. Due to the compact design of the plant, the tank can be simply scaled to the size required according to the desired output and the type and quantity of substrate.

The PowerCompact system is notable for its compact design, as well as its ease of operation and servicing. The plant design and dimensions have proven their worth in the reference plants. Due to their ease of accessibility and the external motors, servicing the main agitators is a very simple procedure. Liquid substrates are pumped into the digester. Depending upon quantity, solid substrates are either premixed in the trough mixer and then fed into the fermenter via a pump, or fed in via the solid feed system. With no additional energy input, the fermented material (digestate) leaves the main digester via a spillway to enter the final storage or intermediate buffer. The PowerRing has an extremely low internal power consumption thanks to its agitator technique, feed system and overall design.

The plant is completely automated and controlled by a user-friendly operating system accessed via touchscreen. The measurements and parameters of greatest importance to the biogas process are logged, allowing the plant processes to be recorded and permanently monitored on an ongoing basis.

Biogest 3801 E Florida Ave., Suite 400 Denver, CO USA -23040 Visit Company Website

Solution Type

  • Anaerobic Digestion

Vendor

  • Equipment Vendor
  • Project Developer

Product

  • Energy

Problem

  • GHG
  • Odor
  • Pathogens

To view additional information about this vendor, click below.

Solution Strengths, Weaknesses and Critical Indicators

Anaerobic Digestion:

  • Long usable life and can be run reliably
  • Creates energy and generates environmental credits
  • Proper feeding & system monitoring is required to avoid system downtime
  • Proven technology for odor control
  • Proven technology for GHG reduction
  • Proven technology for pathogen reduction
  • Different types of systems produce varying gas production rates
  • Requires proper preparation of the feedstock
  • Requires other technologies for energy utilization
  • Requires other technologies for digestate handling
  • Requires other technologies to prevent nitrogen loss
  • Complex systems may require expertise not available on-farm

Newtrient Comments/Opinions:

Anaerobic Digester technology:

  • Is proven technology for odor, GHG and pathogen reduction and energy production
  • Has a long usable life and can be run reliably
  • Require proper preparation of the feedstock
  • Usually requires other technologies for energy utilization
  • Usually requires other technologies for digestate handling
  • Proper feeding & system monitoring is required to avoid system downtime
  Newtrient will continue to work with BioGest to further refine the cost and performance information as more information comes in with new commercial dairy installations.

Newtrient 9-Point Scoring Rating

View the Scoring Page
